A 2019 Ford Transit came up on a mobile diagnostic call in Orlando with a clear complaint. The air conditioning was not blowing cold at all. In Central Florida heat, that is not just uncomfortable, it can quickly make the vehicle unusable for work.
This particular Transit is part of a working fleet, so downtime matters. The driver noticed the issue gradually at first, weak cooling during idle, then warm air even while driving, and finally no meaningful cold air at all. By the time we arrived, the system was running but not performing.

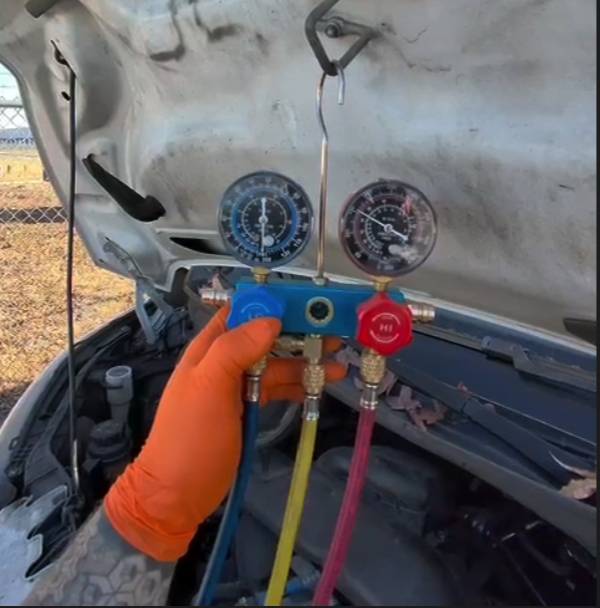

On inspection, the first step was to connect manifold gauges and evaluate system pressures and compressor behavior.
Initial AC System Observations
The low side pressure was unusually high compared to normal operating range. The high side was not building properly and appeared lower than expected for a functioning system under load. The readings were inconsistent with a healthy cycling system.
At a glance, this kind of pressure pattern can point to several possibilities, but the compressor not engaging correctly quickly narrowed the focus.
The compressor clutch was not spinning during commanded operation. That is a key diagnostic clue in a system that still has electrical command present.
Electrical Check at the Compressor Relay
To confirm whether the issue was electrical or mechanical, the compressor relay was removed and tested at the switch side of the circuit. Power was present on the control side, and the circuit was being commanded properly.
When the system was engaged, the compressor clutch could be heard clicking on. That confirmed the electrical signal and relay operation were functioning.
However, even with the clutch engaging, system pressures did not change. The low side remained elevated and the high side did not respond as it should under compression.
That is a critical diagnostic separation point.
Why Pressure Not Changing Matters
In a properly functioning AC system, when the compressor clutch engages, you should immediately see the low side pressure drop and the high side pressure rise. That change confirms the compressor is actively moving refrigerant through the system.
In this case, nothing changed.
Clutch engagement occurred, but there was no mechanical compression happening inside the compressor itself. That means the compressor was not doing its job even though it was being told to run.
Final Diagnosis: Failed AC Compressor
Based on the electrical confirmation, clutch engagement, and lack of pressure response, the conclusion was a failed compressor.
In simple terms, the compressor was receiving power and attempting to engage, but internally it was no longer able to compress refrigerant.
This is one of the more common failure patterns in high heat environments like Orlando, especially on work vans that spend long hours idling with AC demand at maximum.
Why Ford Transit Compressors Fail in Florida Conditions
Vehicles like the Ford Transit operate under constant load conditions. In Florida, that load is even higher due to extreme ambient temperatures and long idle periods.
Common contributing factors include:
High heat cycling stress on internal compressor components
Extended idle operation with high AC demand
Low refrigerant efficiency over time increasing compressor workload
General wear on clutch and internal pump assembly
Once the internal pumping mechanism fails, replacement is the only reliable repair.
What Happens Next
The correct repair path is compressor replacement followed by system evacuation and recharge to factory specification. In many cases, the receiver dryer or accumulator is also replaced to ensure contamination from a failed compressor does not remain in the system.
A full system flush is often recommended depending on internal wear condition.
Mobile AC Repair Advantage in Orlando
For a work vehicle like this Transit, mobile diagnosis saves significant downtime. Instead of transporting a non cooling vehicle to a shop, the system is tested, diagnosed, and confirmed on site.
That allows the owner to move directly into repair planning without guesswork or multiple shop visits.
Final Summary
This 2019 Ford Transit AC failure was diagnosed through pressure testing, electrical relay confirmation, and direct compressor engagement observation. Even though the clutch was clicking on, the lack of pressure change confirmed internal compressor failure.
In Florida conditions, that combination of symptoms almost always leads to the same conclusion. The compressor is no longer functioning and replacement is required.
