2016 Volvo XC60 Starter Problem in Winter Garden: How We Diagnose a No-Crank Before Replacing Anything

A 2016 Volvo XC60 came onto our schedule in Winter Garden with a classic “won’t start” complaint. Customer turns the key (or pushes the button on push-start models), gets nothing, or gets a single click and silence. Sometimes it cranks on the second try. Sometimes it doesn’t crank at all.

That’s a no-crank or intermittent-crank problem, and it’s one of the more interesting diagnostic puzzles out there because the symptom looks identical whether the cause is a $20 battery terminal cleaning, a $250 starter, or a $1,000 wiring harness issue. The job is to figure out which one it actually is before recommending anything.

Here’s how we work through a Volvo XC60 starter complaint, what we test in what order, and why mobile diagnostics are the right call when a vehicle won’t start in your driveway.

Step One: Battery, Always

Before anyone says the word “starter” we test the battery. This is non-negotiable. A weak battery produces every single symptom of a failing starter, and the world is full of perfectly good starters that got replaced because nobody bothered to test the battery first.

Our first move on this XC60:

Resting voltage check. A healthy 12V battery sits at about 12.6V at rest. Anything below 12.4V is a flag, and anything below 12.2V is a battery that’s struggling.
Load test. A digital battery tester applies a controlled load and reports CCA (cold cranking amps) against the battery’s rated CCA. A battery that holds resting voltage but fails under load is bad. We see this constantly in Florida — the heat down here cooks lead-acid batteries from the inside out, and they often look fine on a voltmeter while being completely unable to crank an engine.
Terminal inspection. Loose terminals, corroded terminals, or a bad ground strap can mimic every symptom of a bad starter. Cleaning and tightening costs the customer almost nothing and fixes the problem about 20% of the time.

If the battery passes a real load test and the connections are clean and tight, only then do we move on to the starter circuit. About a third of the no-crank calls we get end at this step. If the battery turns out to be the problem, we replace it on the spot from the Mobile Command Center and the customer is back on the road in under an hour.

Step Two: What Does the Starter Circuit Actually Sound Like?

Different starter symptoms point to different failures. We listen carefully when the customer turns the key:

Single loud click, then nothing. Usually a starter solenoid that’s getting power but the contacts inside are pitted. The pull-in coil works, the bendix tries to engage, but the heavy contacts that send power to the motor are too worn to carry the current. Common end-of-life failure mode.
Rapid clicking (“machine gun” sound). Almost always a battery that’s too weak to hold voltage under solenoid load. Battery problem, not a starter problem.
Silence, no click at all. Can be a starter that’s electrically dead, but it can also be a control-circuit issue: bad ignition switch, bad neutral safety switch (transmission range sensor), bad relay, bad anti-theft system holding the start signal, or a wiring fault.
Cranks slowly. Battery, ground, or starter motor brushes worn out.
Cranks normally but engine won’t start. Not a starter problem. That’s a fuel or spark or compression issue, totally different diagnostic path.

This XC60 was the first scenario: a single click, sometimes followed by a slow crank on a second attempt, sometimes silence. Classic worn-solenoid contacts profile.

Step Three: Volvo XC60 Specifics That Change the Diagnostic

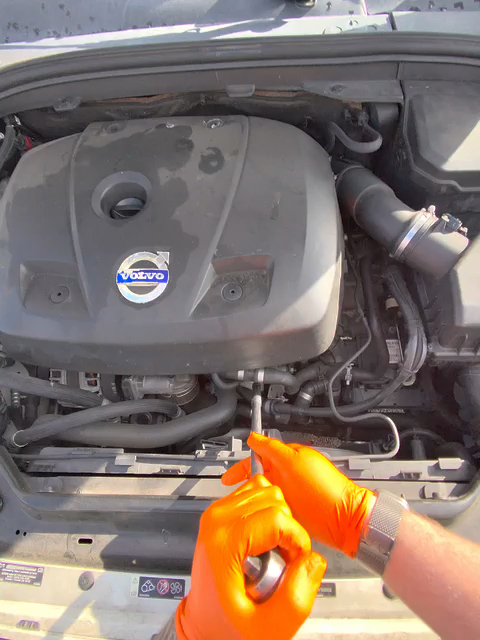

The 2016 XC60 ran with the Drive-E 2.0L four-cylinder in T5 trims and the older inline-five 2.5L in earlier-build T5s. Both engines mount the starter on the lower side of the bell housing, accessible from underneath. Volvo’s engineering on these is generally solid, but there are a few things specific to this generation worth knowing:

The starter is a Bosch unit on most variants. Reliable, but they do wear out around 100,000-150,000 miles, especially in the Florida heat where everything electrical ages faster.
Push-button start models add complexity. A push-button system reads the brake pedal switch, the key fob proximity, the steering lock module, and the security gateway before allowing the start signal to reach the starter. Any one of those can prevent a crank without throwing an obvious code.
Neutral/Park signal. The transmission range sensor has to confirm the gear selector is in Park or Neutral before the starter relay engages. A worn or misadjusted shifter can cause intermittent no-cranks that feel exactly like a bad starter.
Battery location. On the XC60, the battery sits in the engine bay (some Volvo models put it under the trunk floor or behind the rear seat — different procedures, different access).

We always check the platform-specific stuff before condemning a starter. There’s no point replacing a $300 part if the actual fault is a $40 brake pedal switch.

Step Four: Voltage Drop Testing the Starter Circuit

This is the test that separates real diagnostics from parts-cannon repair work.

A voltage drop test measures how much voltage is being lost across each connection in the starter circuit while it’s actually trying to crank. With a multimeter set to DC volts:

Battery positive to starter positive terminal. Should be under 0.5V drop. More than that, the cable or connection is bad.
Engine block to battery negative. Same threshold. More than 0.5V means a bad ground, often the cause of starter “failure” that’s actually a wiring problem.
Solenoid input vs solenoid output during crank. A dropout here means the solenoid itself is internally failed.

If those tests come back clean and the battery is good, the starter motor itself is the suspect. We can confirm by tapping the starter while a helper holds the key (a classic field test — if a tap-and-crank works, the brushes are gone), or by pulling the starter and bench-testing it.

Step Five: Replace, Don’t Guess

When the diagnosis comes back clearly on the starter, we replace it. On the 2016 XC60 the starter is a from-below job. Wheel off, splash shield off, two main bolts and a couple of electrical connections, drop the old unit out, install the new one. Mobile setup, customer’s driveway, no tow truck, no shop visit.

We always reuse the original ground strap and main feed cable unless they’re visibly damaged or showing voltage drop. New starter, same wiring. Test crank a few times to confirm. Done.

Why Mobile Diagnostics Make Sense for No-Cranks

A no-crank vehicle is the worst kind of vehicle to deal with. You can’t drive it anywhere. A tow truck to a shop is $100+ before any actual diagnostic work happens, and if the problem turns out to be a $25 battery terminal cleaning, you’ve spent more on the tow than on the repair.

Mobile diagnostics flips that math. We come to the vehicle. We test the battery, the connections, the starter circuit, and the control wiring at your location. We tell you what it actually is, and if it’s something we can fix on the spot (battery, terminals, sometimes the starter itself), we do it right there. If it’s something that needs a part order or a longer repair, we get the truck running enough to get it to a follow-up appointment, or we arrange the repair for the next day.

Carfax Reporting on Starter Diagnostics

Every visit gets reported to the vehicle’s Carfax service history, including diagnostic-only visits. That means even if all we did was test the battery and clean the terminals, that visit shows up as documented professional service on the Volvo’s permanent record. Most independent shops don’t report. We always do.

When this XC60 owner goes to sell or trade three years from now, the Carfax line for “professional starter circuit diagnostic and battery test” is a positive signal, not a negative one. Buyers like to see that small issues were addressed by a real shop, not ignored.

Symptoms to Call About Before You’re Stranded

If your XC60 (or any vehicle) is showing any of these, get it checked early:

Slow or hesitant cranking, especially on cold starts
Single click and then silence on the first key turn
Intermittent no-crank that comes and goes
Dimming dash lights when you turn the key
Battery age over four years in Florida heat
Multiple electronic resets (clock, radio presets) suggesting a weak battery

Mobile battery and starter circuit testing is fast and cheap. It’s the difference between a planned repair and a 7am driveway breakdown when you need to be at work.
