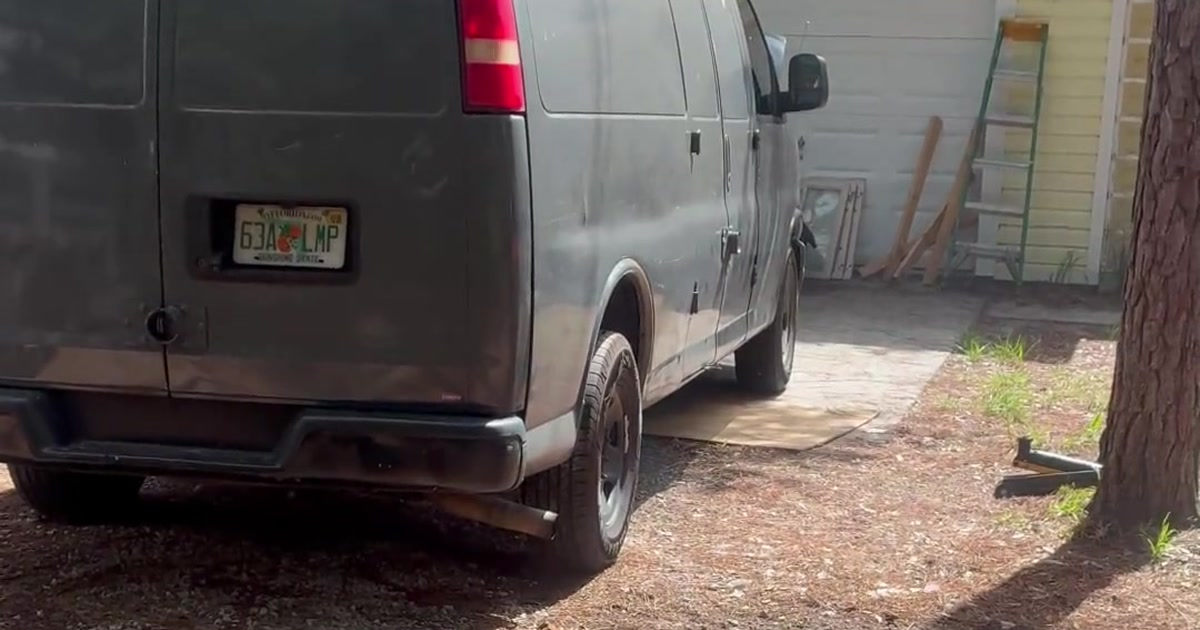

A customer in Central Florida called Johnny on the Go about a 2013 Chevy Express 3500 with a backfire problem. The way they described it, we knew we were probably in for one of those service calls. We were. When the van fired off in front of us for the first time, the sound was something else, closer to a gunshot than to a normal engine misfire. The kind of bang that makes everyone within a hundred feet stop and look.
That’s the moment we said the only thing you can say in that situation: “You weren’t kidding.”
A backfire that loud isn’t just a nuisance. It’s a symptom of something specific going wrong, and on a commercial Express 3500 it’s the kind of problem that costs the owner money in damage and lost trust if it isn’t fixed.
Here’s what causes a backfire like that on a Chevy Express, why it’s worth taking seriously, and how a proper diagnosis catches the root cause before the engine pays the price for it.
What a Loud Backfire Actually Is
A backfire is unburned fuel and air igniting somewhere it shouldn’t, typically in the exhaust system after a combustion event that didn’t complete normally in the cylinder, or in the intake manifold from a similar issue running in the wrong direction.
The volume of the noise is a function of how much unburned mixture is reaching the spot where it eventually ignites. A small amount makes a pop. A larger amount, accumulated over a few engine cycles, makes the bang. A really large amount, ignited all at once in a closed exhaust system, makes the noise this Express 3500 was producing, the kind that sounds like a small-caliber firearm and makes everyone in the parking lot stop what they’re doing.
That much unburned fuel reaching the exhaust means a few things are going wrong simultaneously. The cylinder isn’t burning the mixture cleanly. The exhaust system is hot enough to ignite it. And whatever is causing the incomplete combustion is happening repeatedly, not as a one-off.
What Causes a Backfire on a Chevy Express 3500
The Express 3500 came with either the 4.8L or 6.0L Vortec V8 in this era. Both are reliable engines, but they share the same set of failure modes that can produce a backfire condition.
Ignition system issues. A bad spark plug, a failing ignition coil, a cracked spark plug wire (if applicable), or a fouled plug means the cylinder doesn’t fire properly. The unburned mixture gets pushed out the exhaust valve into a red-hot exhaust manifold, where it ignites. On a V8 with eight cylinders firing in sequence, a single bad ignition component on one cylinder will produce a regular, repeating backfire pattern.
Lean fuel condition. A vacuum leak (cracked intake hose, leaky intake manifold gasket, failing PCV system, broken vacuum line) lets unmetered air into the engine. The computer can’t compensate for air it doesn’t know about, the mixture goes lean, combustion slows or stalls, and unburned fuel makes it past the exhaust valve. Big intake leaks produce loud backfires. The Express 3500 in particular has a few common spots where the intake gaskets and PCV components fail.
Rich fuel condition. The opposite problem, too much fuel for the available air, also produces backfires. A leaking fuel injector, a stuck-open fuel pressure regulator, or a failing oxygen sensor that’s reporting a false lean condition (causing the computer to overcompensate by adding more fuel) can all flood the cylinder with fuel that doesn’t burn cleanly. The unburned fuel hits the exhaust and ignites.
Exhaust valve problems. A burned, bent, or stuck-open exhaust valve lets the combustion event communicate directly with the exhaust manifold. On a healthy engine, the valve seals tight when combustion is happening. On a damaged valve, the burn isn’t contained, and unburned fuel can also slip out before it should. Backfires from a valve problem are often paired with a noticeable loss of power on that cylinder.
Catalytic converter issues. A partially clogged or damaged catalytic converter creates back pressure. The exhaust can’t flow normally, the cylinder doesn’t scavenge properly, and the combustion pattern gets thrown off. This is less common but worth ruling out on a high-mileage van.
ECM/PCM mapping issues. Less common, but a software fault or sensor calibration problem can cause the computer to deliver the wrong air-fuel ratio under specific conditions, producing backfires that only happen at certain RPMs or throttle positions.
Why a Loud Backfire on a Commercial Van Is Not Something to Ignore
It’s tempting to dismiss a backfire as a noisy annoyance. On a commercial van like an Express 3500 that’s putting in work every day, that’s an expensive mistake.
First, the backfire is damaging the engine. Every cycle of unburned fuel hitting a hot exhaust is heat the system wasn’t designed to absorb. Exhaust valves can burn from the repeated high-temperature events. The catalytic converter, already a several-thousand-dollar replacement on this generation, gets damaged from being overfueled. Eventually it can melt internally and clog, which compounds the original problem.
Second, the backfire is a sign of inefficient combustion. While it’s happening, the van is burning more fuel than it should, putting more wear on the engine, and not making the power it’s rated for. A fleet operator is paying for the wear and the fuel either way.
Third, a backfire that sounds like a gunshot is a public-perception problem. Neighbors, customers, and bystanders react to loud bangs. A commercial van that startles people every time it idles or accelerates is a van that becomes a complaint waiting to happen, and in a worst case scenario, a police response waiting to happen.
The right move is to diagnose and fix it. Not later, now.
The Diagnostic Process
When we diagnose a backfire on an Express 3500, we don’t start with parts. We start with the data.
We scan the PCM for stored codes, pending codes, and freeze frame data. A backfire condition will often store misfire codes — P0300 (random/multiple), P0301 through P0308 (specific cylinder), and freeze frame will tell us the RPM, load, throttle position, and air-fuel ratio at the moment the fault was set. That data narrows the problem to a specific operating range and a specific cylinder or set of cylinders.
We pull plugs and inspect them. A fouled plug, a plug with the wrong heat range, or a plug with melted electrodes tells you a story about what’s happening in that cylinder. Carbon, fuel, oil, each has a different signature.
We check fuel pressure and look at injector pulse width on the scan tool. A fuel system that can’t maintain spec pressure or an injector that’s pulsing wrong is going to produce mixture problems that the rest of the diagnosis hangs on.
We smoke-test the intake for vacuum leaks. On the Express 3500’s vintage, this is where a lot of these backfire calls end up — a brittle PCV hose, a failed intake gasket, a torn vacuum line that’s been pulling unmetered air for a while.
We do a compression test or a leak-down test if the codes or behavior point at a cylinder sealing problem. A burned exhaust valve will show up clearly here.
We check the exhaust system for restrictions and for evidence of overheating that suggests the cat has already taken damage.
Every component either passes or gets flagged. The flagged components get fixed. The customer doesn’t pay for parts that aren’t the actual cause.
Why Mobile Diagnosis Wins on a Loud Backfire
A van that’s backfiring like a gunshot is not a vehicle anyone wants to drive across town to a shop. Every additional mile is more damage to the cat, more wear on the valves, more fuel wasted, and more public attention you don’t want. Mobile means the van stays where it is, the diagnosis happens on the spot, and the repair gets scheduled before the situation gets worse.
For commercial fleet customers, this is especially valuable. The van is supposed to be making money for the operator. Time at a shop is time the van isn’t earning. Mobile fleet service means the diagnosis and the repair both happen at the yard, the job site, or wherever the van ends its shift.
Carfax Reporting on Backfire Diagnosis and Repair
The diagnostic and the repair on this Express 3500 are logged on the vehicle’s Carfax service history with technician notes — codes pulled, components tested, findings, parts replaced, post-repair verification. For a commercial van that may eventually be sold, that paper trail is real money on the resale side. A van with a documented “diagnosed backfire condition, repaired, verified” entry on Carfax is worth more than a van with a known-but-undocumented running problem.
Symptoms That Could Mean Your Van or Truck Has a Backfire Issue
If your van or truck is showing any of these, a mobile diagnosis is worth the call before the cat gets damaged: loud popping or banging from the exhaust at idle or under acceleration, a check engine light with misfire codes, rough idle that wasn’t there before, noticeably reduced fuel economy, the smell of raw fuel from the exhaust, hesitation or stumbling when you press the throttle, or a noise loud enough that bystanders are reacting to it.
A mobile backfire diagnosis on an Express 3500 typically takes about ninety minutes. We bring the scan tool, the fuel pressure tester, the smoke machine for intake leak testing, and the experience with the Vortec V8 platform.
