Anytime you’re doing a power steering pump on a 2005 Ford Sport Trac with the 4.0L V6, you run into the same wall every tech runs into the first time they do this job: the pump itself is held in by three 10mm bolts (which are no problem), but the hard line that bolts into the pump sits in a spot you can’t get a normal ratchet on without removing the fan shroud first.
That fan-shroud detour is the difference between a one-hour job and a three-hour job. Pulling the shroud means draining or sealing the coolant, disconnecting the fan, unbolting the shroud, working around the radiator, and then doing it all in reverse when you’re done. For one bolt on a hard line.
There’s a better way. The right tool combo gets that hard line off without touching the fan shroud at all. Here’s the setup, the rest of what this repair involves, and why this same tip applies to the Mountaineer and earlier Sport Trac models that share the same engine bay.
The Tool Combo You Actually Need
Three pieces of equipment make this job work without pulling the shroud:
- A crow’s foot wrench in the correct size for the hard line fitting. The crow’s foot is a flat, open-jawed adapter that slides onto a ratchet extension. It’s designed exactly for situations like this, a fitting tucked into a spot where a regular box-end or socket can’t reach.
- A 1-inch extension on the ratchet to position the crow’s foot at the right angle and distance. Length matters here. Too short and the crow’s foot won’t reach without something else getting in the way. Too long and you lose the leverage you need to crack the fitting loose.
- A 3/8 inch ratchet to drive the whole assembly. A 3/8 ratcheting wrench works too if you’ve got one, the goal is just enough mechanical advantage to break the fitting free without overdoing it. The hard line fitting isn’t meant to be torqued like a head bolt. You want feel, not muscle.
That combination, crow’s foot, one-inch extension, 3/8 ratchet, gets the hard line off cleanly, with the fan shroud still in place, and no coolant system disturbed.
Why This Setup Works
The crow’s foot replaces the closed-jaw geometry of a socket or box wrench with an open-jaw geometry that can slide over a fitting where a closed jaw won’t fit. The extension repositions the working face of the crow’s foot away from the obstacles (the shroud, the AC line, whatever’s in the way) and gives you a straight pull on the ratchet. The 3/8 ratchet provides the right amount of leverage for the job size.
Without those three pieces, the only path is to pull the shroud and access the fitting from a different angle. With those three pieces, the path is straightforward. This is the kind of tool-knowledge difference that separates a tech who’s done this job before from a tech who’s about to learn the hard way.
The Rest of the Job
Once that hard line is loose, the rest of the power steering pump replacement on the 4.0L V6 is genuinely straightforward.

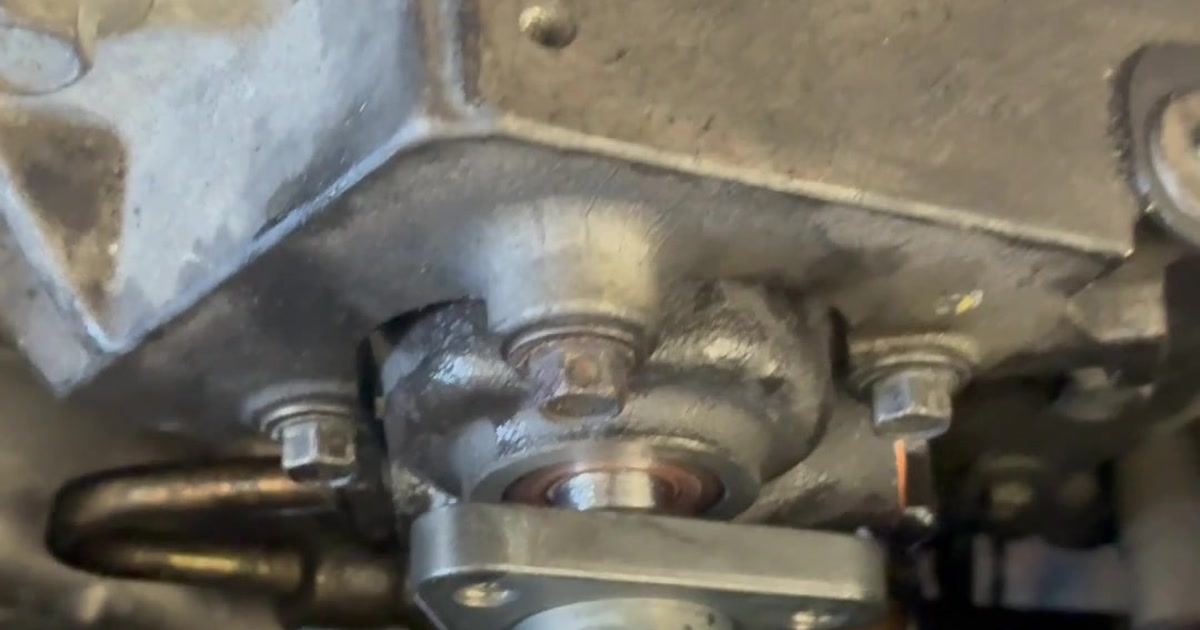

Three 10mm bolts hold the pump itself in the bracket. Standard ratchet and socket. Nothing tricky.
The return hose comes off the back of the pump. Catch the fluid in a pan, power steering fluid is messy and goes everywhere if you let it. The hose itself usually pulls off the barb fitting after the clamp is loosened.
With the pump unbolted, the hard line loose, and the return hose disconnected, the pump lifts out. The new pump goes in the reverse order, return hose, three 10mm bolts torqued to spec, hard line fitting threaded back in carefully (don’t cross-thread it), serpentine belt routed back per the diagram.
Fill the reservoir with the correct power steering fluid. Bleed the system per Ford’s procedure: with the engine off, turn the wheel lock to lock several times, top off the fluid, then start the engine and turn lock to lock a few more times while the system circulates and any trapped air works out. Top off one final time at correct level, hot.
Why This Same Tip Applies to Other Ford Trucks
The 4.0L V6 in this Sport Trac is a long-running Ford engine. It went into earlier Sport Tracs, Explorers, Mountaineers, and Rangers across multiple model years. The engine bay layout in those vehicles uses the same general arrangement for the power steering pump, the hard line, and the fan shroud, meaning the same tool combo gets you out of pulling the shroud on those trucks too.
If you’re working on a Mountaineer or an earlier-generation Sport Trac and the hard line looks impossible to reach without removing the fan shroud, try the crow’s foot setup before you commit to the shroud-out route. There’s a very good chance you’ll save yourself a few hours.
Why the Pump Fails on These Trucks in the First Place
Power steering pumps on the 4.0L Ford V6 are an expected wear item once these trucks pass 100,000 miles or so. Florida heat doesn’t help, the pump seal degrades faster, fluid leaks develop on the front of the pump body or around the shaft, and eventually the pump either starts whining, develops a leak that won’t stay full, or actually fails to make pressure.
Common signs that your pump is on the way out: a whine or moan when you turn the wheel (especially at low speed or full lock), heavy or stiff steering, fluid drops on the driveway where the front of the engine sits, a foamy or aerated look to the fluid in the reservoir, or a power steering fluid that’s dark and burnt instead of clean and red.
If you’re seeing any of those, the pump is probably worth replacing before it strands you with no power assist in a parking lot.
Why Mobile Repair Works for This Job
A 2005 Sport Trac with a failing power steering pump is exactly the kind of repair that fits a mobile workflow. The truck doesn’t have to be moved. The job takes about ninety minutes to two hours start to finish with the right tool combo. The customer doesn’t have to coordinate a tow or a shop appointment. We show up, do the job in the driveway, and the truck has full power assist again before we pack up.
For older trucks specifically, mobile makes even more sense, these aren’t the customer’s daily driver luxury vehicles, they’re often work trucks, weekend trucks, or backup vehicles that don’t need to leave the property for routine repair work.
Carfax Reporting on the Repair
This power steering pump replacement is logged on the vehicle’s Carfax service history with technician notes. Most independent shops don’t report. We always do. A documented power steering service on an older Ford truck is one of the resale-value items that separates a maintained truck from a deferred-maintenance truck.
Symptoms That Could Mean Your Pump Needs Replacement
If your 4.0L Ford Sport Trac, Explorer, Mountaineer, or Ranger is showing any of these, a mobile power steering inspection is worth the call: a whining or moaning noise from the front of the engine when you turn the wheel, stiff or heavy steering that requires more effort than it used to, visible power steering fluid drops on the driveway, a power steering reservoir that needs topping off more than once or twice a year, dark or burnt-smelling power steering fluid, or a steering wheel that’s harder to turn at low speed than at highway speed.
A mobile power steering pump replacement on a 4.0L Ford takes about ninety minutes with the right tool setup. We bring the OEM-spec pump, the right fluid, and yes, the crow’s foot and the 1-inch extension.
